ENERGY SOLUTIONS

Forklift Batteries

We help solve the issues of high-pricing, sudden decline in performance, unplanned expenses, and long waits for product delivery!

Eco Services
e-Charger

For Customers Considering Purchasing Electric-Powered Forklift Batteries.

We help solve issues of high-pricing, sudden decline in performance, unplanned expenses, and long waits for product delivery! For a fixed payment each month, HAMADA's Forklift Battery Eco Service guarantees the performance of your company's batteries.

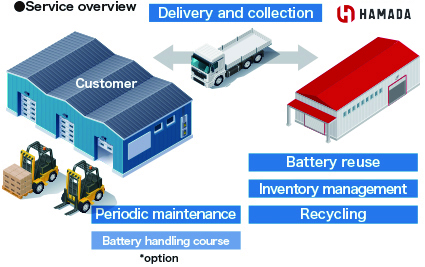

The Structure and Advantages of Forklift Battery Eco Service

After collecting batteries that are declining in performance, we replace them with quality regenerated batteries

1. If your battery has reached the end of its life, we will replace it with a working one. As we provide regular check-ups for our batteries, you can always enjoy their stable performance.

2. We restore the batteries we have collected using our original technical knowledge. By restoring discarded batteries that can still be used, we help reduce operating costs.

3. Batteries which cannot be regenerated are taken to a refining company to separate out the lead and plastic for recycling. We dispose of batteries using optimal methods, which take the environment into consideration.

Integrated Battery Management

Consistently Reliable Use

We are converting to recycling-oriented operation for the electric-powered vehicle batteries that up until now were manufactured then discarded. This is HAMADA’s Forklift Battery Eco Service. If your batteries are experiencing any issues, contact us immediately. We will provide you with the same type of battery so your business operations are not disrupted.

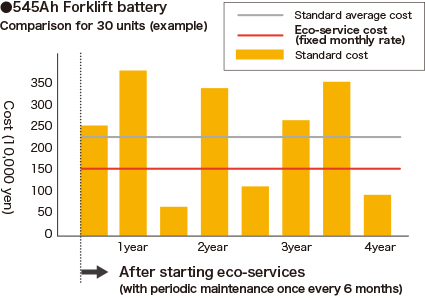

Budget appropriately by simply multiplying the number of machines by the fixed monthly cost

Establish a Set Yearly Budget

With conventional replacement methods expenses constantly fluctuate, but by paying a fixed monthly amount, you can now manage your budget without a worry. There is no need to raise a large amount of funds for unexpected product exchanges. As a result, you can achieve a reduction to your overall running costs.

Process for Introducing Our Forklift Battery Eco Service

1. First, you need to prepare the following information

●Battery type and capacity
●Forklift model
●List of vehicles
We will provide you with a quotation of the approximate costs. With this, you will be able to get an idea of pricing and how much value you will get from employing this service.

2. Consultations and onsite surveys

In order to compare the advantages after introduction with how things are now, we carry out a questionnaire and investigate current onsite operating conditions. We also check the carry-in routes for batteries.

3. Contract and start of services

The date service begins will be determined in the contract. In order to allow for its smooth introduction, we will provide a detailed schedule leading up to when the service starts.

Introduction Examples

Optional products

Along with being able to expedite conventional refilling operations, by keeping water at an appropriate level, it is also possible to prevent battery degradation resulting from leakage, etc.

Improve operations by shortening the amount of time needed to charge batteries.

Energy-Saving High-Speed Battery Chargers for Forklifts

HAMADA's e-charger offers energy-saving, high-speed battery charging for forklifts and other electric-powered vehicles. Problems associated with conventional forklift battery chargers, such as long charging times, charging-related damage, and heavy electricity consumption, can be resolved with the e-charger's IC&C control system and large current for quick charging. The result is dramatically improved efficiency.

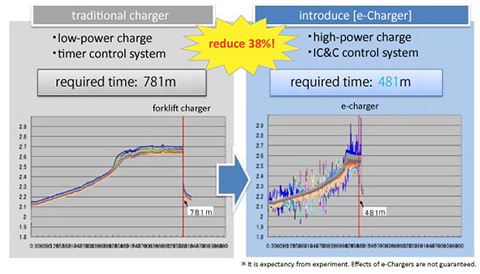

Reduced charging times

By charging with large currents, charging times can be reduced dramatically from 13 to 8 hours. (Company investigation)

Reduced Costs and CO2 Emissions

Comparative data of charging power

	e-Charger	Traditional chargers (reference)
Charging power	1,230kWh/year (4.1kWh/charge)	1,500kWh/year (5.0kWh/charge)
Energy-saving potential	270kWh/year per battery, energy-saving potential
Cost-reducing potential	5,400 yen/year per battery, cost-reducing potential
CO2-reducing potential	81.36kg-CO2/year per battery, CO2-reducing potential

By eliminating excess charging, it is possible to reduce charging costs and CO2 emissions by 20%. This helps address the energy reductions accompanying revisions to energy-saving laws.

■ Per battery
Yearly electricity reductions for charging (energy-saving potential)= 270kWh/year
If the cost of electricity for 1kWh is 20 yen, then the amount saved on electricity per year= 270kWh * 20 yen= 5,400 yen/year (cost-reducing potential)
Taking TEPCO's CO2 emission value of 0.339 (kg-CO2/kWh), the amount of CO2 reduced annually (CO2-reducing potential)= 270kWh/year * 0.339(kg-CO2/kWh) = 81.36kg-CO2/year.

*1:The above data is based on HAMADA head factory and monitor client experiments.
*2: The above data is for reference only. It does not guarantee effectiveness.
*If charged daily and operated 300 days a year.

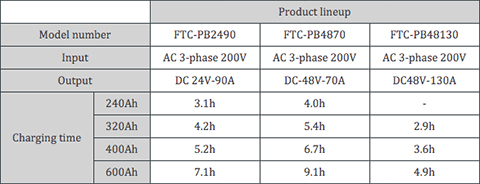

Product Specifications

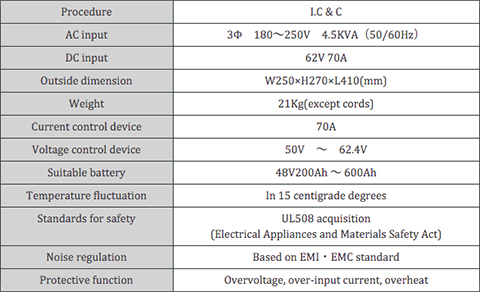

List of Specifications
